Place of Origin : Shanghai, China
Brand Name : Icema
MOQ : 1
Price : $7,900-8,380
Ice Shape : Tube Ice
Voltage : 380V/220V|3P|50HZ/60HZ
Dimensions : 2460*1425*1850mm
Refrigerant : R404
Condensation Way : Water Cooling/Air Cooling
Tube Ice Diameter : 22mm/25mm/28mm/32mm/38mm
Compressor Brand : Bitzer
Material : SUS304 Stainless Steel
Controller : PLC
Tube Ice Temperature : -8 ℃
Power : 4.6kw
Weight : 1200 KG
Evaporator Temperature : -10℃
Daily Output : 1T / 24H
Machine Size : 1490*900*1850CM









MODEL | OUTPUT | POWER | INPUT VOLTAGE | MACHINE SIZE |
BMT-10 | 1T / 24H | 4.6KW | 380V/3P/50HZ | 1490*900*1850CM |
BMT-20 | 2T / 24H | 8.3KW | 380V/3P/50HZ | 1490*900*1850CM |
BMT-30 | 3T / 24H | 11.8KW | 380V/3P/50HZ | 1490*900*1850CM |
BMT-40 | 4T / 24H | 14.5KW | 380V/3P/50HZ | 1490*900*1850CM |
BMT-50 | 5T / 24H | 17.35KW | 380V/3P/50HZ | 1490*900*1850CM |
BMT-80 | 8T / 24H | 32KW | 380V/3P/50HZ | 1490*900*1850CM |
BMT-100 | 10T/24H | 40KW | 380V/3P/50HZ | 1490*900*1850CM |
BMT-150 | 15T/24H | 55.5KW | 380V/3P/50HZ | 2750*1680*3500CM |
BMT-200 | 20T/24H | 70KW | 380V/3P/50HZ | 2960*2100*3550CM |







|
|

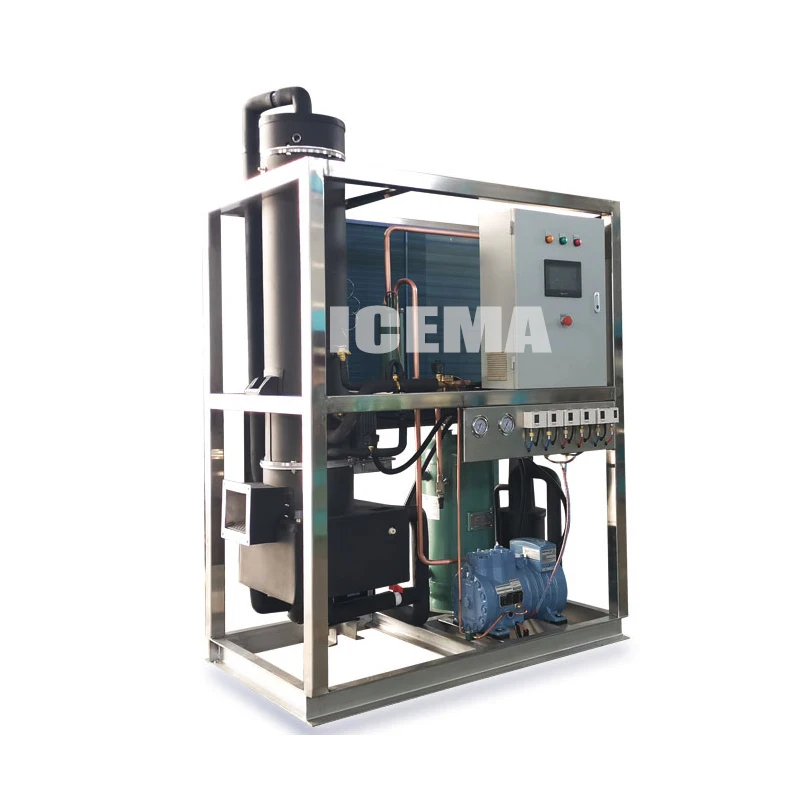

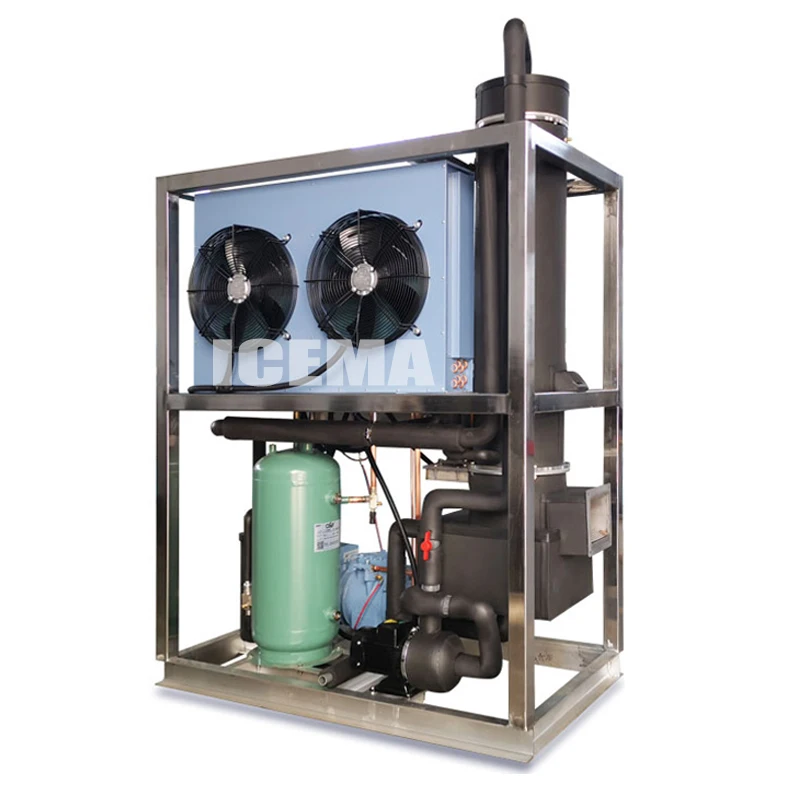

Automatic 1T/24H Large Tube Ice Machine with SUS304 Stainless Steel and R404 Refrigerant for Commercial Use Images |
